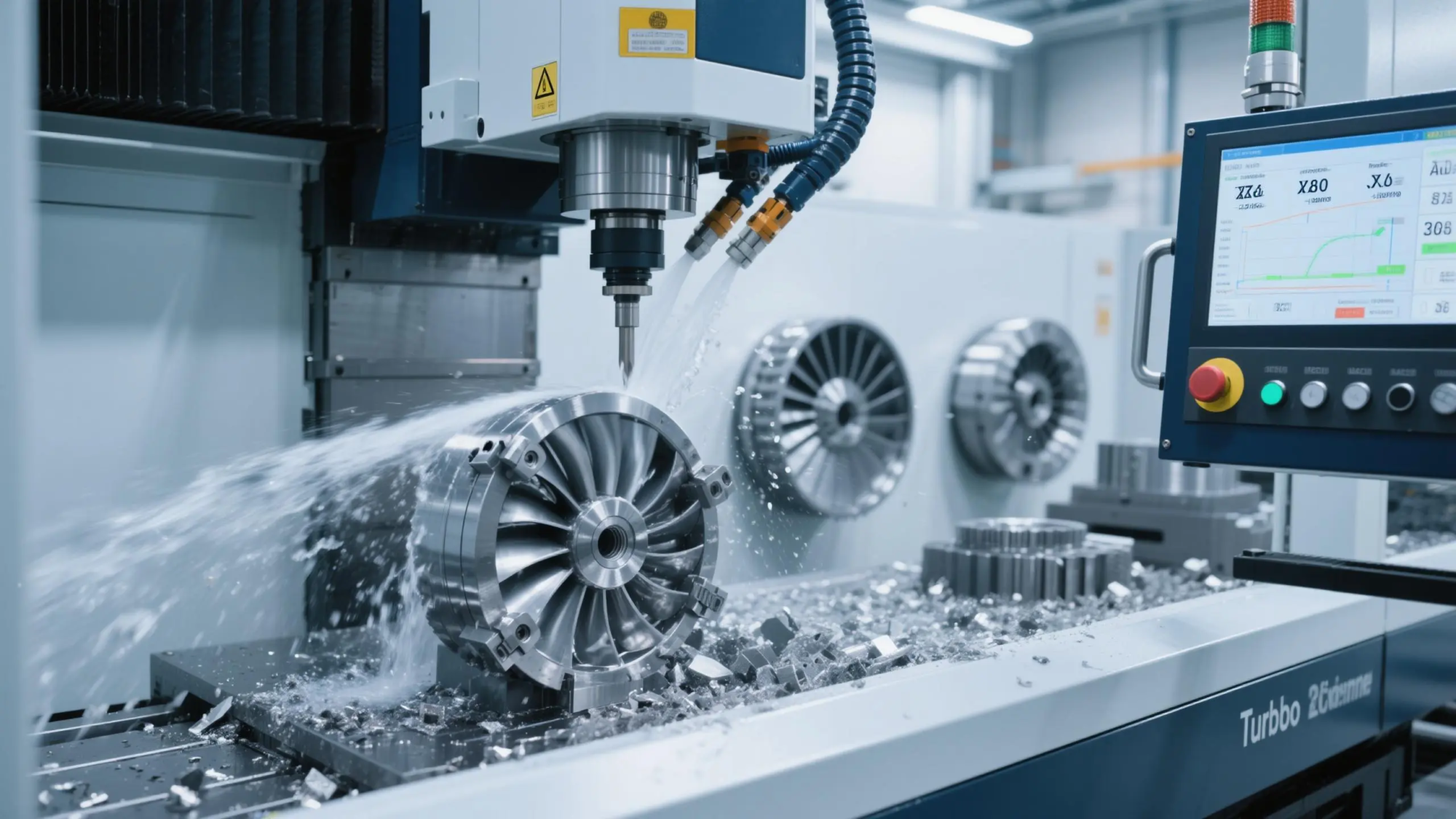

5 Axis CNC Machining Turbo: Precision, Performance, and Innovation

In today’s advanced manufacturing world, turbocharger components demand the highest levels of precision and performance to push engine efficiency and power output. 5 axis CNC machining has emerged as the gold standard for producing critical turbo parts—such as compressor housings, turbine wheels, and exhaust manifolds—by providing the capability to machine intricate geometries in a single setup. This not only minimizes repositioning errors but also greatly enhances productivity and surface finish quality. In this guide, we explore the benefits of 5 axis CNC machining for turbo components, analyze technical challenges and solutions, and explain why partnering with industry leaders like Great Light CNC Machining Factories can drive unmatched quality and cost efficiency in turbo machining.

Why 5 Axis CNC Machining is Essential for Turbo Components

Key Turbo Parts and Their Challenges

Modern turbochargers incorporate complex internal geometries that require both precision and strength:

• Turbo Compressor Housings:
  These housings are typically machined from cast aluminum (e.g., A356-T6) or ductile iron. Their intricate internal volutes and thin-walled structures demand a single setup machining process to optimize airflow, maintain tight tolerances, and reduce cycle times.
• Turbine Wheels:
  Made from high-performance superalloys such as Inconel 718 or Mar-M247, turbine wheels require extremely accurate aerodynamic blade profiles with tolerance specifications often reaching ±0.01 mm. Maintaining such precision is critical for optimal engine performance.
• Exhaust Manifolds:
  Constructed from stainless steel (321/304), these components must offer excellent heat resistance and flawless flange flatness (within 0.05 mm) to ensure leak-free assembly and efficient exhaust flow.

5 Axis CNC Advantages Over Traditional Methods

A comparative analysis demonstrates the distinct benefits of 5 axis CNC machining:

The ability to process complex curves and internal structures in one go is critical for turbo machining, ensuring both performance and durability under extreme operating conditions.

Turbo Compressor Housing Machining – A Technical Breakdown

Step-by-Step Process

1. Material Preparation:
   Raw materials, such as cast aluminum (A356-T6) or ductile iron, undergo stress-relief processes to prevent warping during machining.
2. Roughing:
   High-efficiency milling (HEM) techniques remove the bulk of the material quickly. Tools like carbide end mills with TiAlN coatings are used for their heat resistance and durability.
3. Semi-Finishing & Finishing:
   Advanced 5 axis CNC milling enables simultaneous machining of both internal volutes and external features. Diamond-coated tools are employed to achieve extremely smooth finishes (Ra 0.4 µm), essential for maximizing airflow efficiency and minimizing friction.
4. Drilling and Tapping:
   Precision holes for head bolts, oil passages, and sensor integration are drilled and tapped, ensuring that all interfaces meet design tolerances.
5. Post-Processing:
   Critical post-machining steps include heat treatment (such as aging for aluminum to enhance hardness) and surface coating processes like nickel plating or thermal spraying to improve wear resistance.

Case Study – Garrett Turbo Housing

• Client: A performance automotive manufacturer
• Challenge: Produce 50 aluminum turbo compressor housings with a bore concentricity tolerance of 0.02 mm.
• Solution:
  • The project employed a DMG Mori NHX 6300 5-axis machine, allowing for simultaneous machining of complex internal and external features.
  • Adaptive toolpaths and in-process probing ensured tolerances were maintained within ±0.005 mm.
  • Post-processing with shot peening further improved fatigue resistance.
• Result:
  Production was completed 30% faster than traditional 3-axis methods, with zero rework required and overall costs reduced by 25% compared to European suppliers.

Turbo Abrasive Machining and Post-Processing

Critical Surface Treatments

Advanced surface finishing is essential to optimize performance:

1. Abrasive Flow Machining (AFM):
   This technique smooths complex internal passages to ensure uninterrupted airflow and cooling efficiency.
2. Thermal Spray Coating:
   Coatings such as aluminizing or ceramic layers protect turbo components against extreme temperatures (up to 1,000°C) and enhance durability.
3. Dynamic Balancing:
   Precise balancing of turbine wheels is critical for high-speed rotation (often exceeding 150,000 RPM) to minimize vibration and extend service life.

Quality Control Standards

• Dimensional Verification:
  Rigorous CMM checks ensure that every critical dimension—from bore diameters to outer contours—meets design specifications.
• Pressure and Fatigue Testing:
  Critical components, especially compressor housings, undergo pressure tests (up to 4 bar) and dynamic balancing to guarantee performance under operational loads.

Material Selection for Turbo Components

Selecting the right material is crucial not only for performance but also for cost efficiency. Inconel 718, for example, is essential for high-temperature applications but significantly more expensive than aluminum alloys.

Choosing a Turbo Machining Partner

5 Essential Criteria

1. Technical Expertise:
   Choose manufacturers with proven experience in machining turbo-specific alloys and intricate geometries.
2. Advanced Equipment:
   Ensure the facility utilizes modern 5 axis CNC mills (e.g., Mazak VARIAXIS, Haas UMC-750) capable of handling complex designs.
3. Certifications:
   Look for ISO 9001 and IATF 16949 certifications to guarantee quality and compliance, especially for automotive applications.
4. Lead Times:
   Ideal suppliers can deliver prototypes in 7–10 days and full production runs within 3–4 weeks.
5. Global Logistics:
   A partner with robust logistics can manage door-to-door shipping under DDP (Delivered Duty Paid) terms, reducing hidden costs.

Red Flags to Avoid

• Limited Material Options:
  Suppliers unable to source aerospace-grade superalloys may compromise performance.
• Insufficient Testing Facilities:
  Lack of in-house CMM verification or pressure testing capabilities can signal potential quality issues.
• Opaque Pricing Models:
  Beware of vague or overly low quotes that might hide significant additional costs.

Cost-Saving Strategies in Turbo Machining

1. Design Optimization:
   Simplify CAD designs where possible to minimize machining time without sacrificing function.
2. Batch Machining:
   Group small orders to maximize machine uptime and amortize setup costs over multiple parts.
3. Hybrid Manufacturing:
   Consider integrating 3D printing for near-net shape production followed by CNC finishing for critical surfaces.
4. Economies of Scale:
   Leverage volume discounts available through global suppliers like Great Light CNC, which can lower per-unit costs by 30–50% compared to Western suppliers.

Future Trends in Turbo Machining

• AI-Driven Toolpaths:
  Future systems will employ AI to dynamically optimize cutting paths, further reducing cycle times and material waste.
• Sustainable Manufacturing:
  New energy-efficient machines and recyclable coolants are driving the industry toward greener practices.
• Digital Twin Technology:
  Virtual simulations will enable pre-production validations, reducing trial-and-error costs and ensuring impeccable quality.
• Hybrid Manufacturing:
  The integration of additive manufacturing (3D printing) with CNC machining will allow manufacturers to produce near-net shape parts that require minimal finishing.

Why Partner with Great Light CNC?

As a leader in 5-axis turbo machining, Great Light CNC Machining Factories provide the perfect blend of advanced technology, material expertise, and cost efficiency. Here’s why they stand out:

Advanced 5-Axis Machinery

• Equipment:
  State-of-the-art machines like the Haas UMC-750 and DMG Mori NHX series ensure precision machining of even the most intricate turbo components.
• In-Process Monitoring:
  Real-time probing and adaptive toolpath optimization keep tolerances within ±0.005 mm, guaranteeing defect-free parts.

Material Mastery and End-to-End Services

• Expertise:
  Skilled in machining high-performance materials like Inconel, titanium, and high-silicon aluminum.
• Post-Processing:
  In-house capabilities include thermal spraying, anodizing, and shot peening—ensuring components meet stringent durability and performance standards.
• Global Logistics:
  With streamlined door-to-door shipping (including DDP terms), parts are delivered quickly and reliably to your location.

Competitive Advantage and Cost Efficiency

• Lower Costs:
  Great Light offers competitive pricing, achieving cost reductions of up to 25–30% compared to European and North American suppliers.
• Fast Turnaround:
  Prototypes can be delivered within 7–10 days, with full production orders completed in as little as 3–4 weeks.

Conclusion – Powering Innovation in Turbo Machining

5 axis CNC machining is transforming turbo component production by delivering unparalleled precision, efficiency, and versatility. Whether you’re manufacturing compressor housings, turbine wheels, or exhaust manifolds, the benefits of 5-axis processing—from single-setup machining to superior surface finishes—are clear. Critical cost factors include material selection, part complexity, tolerance requirements, and post-processing needs.

By leveraging advancements such as AI-driven toolpaths, hybrid manufacturing, and sustainable production practices, the future of turbo machining is bright. For manufacturers seeking excellence and competitive pricing, Great Light CNC Machining Factories offer unmatched expertise and end-to-end solutions that ensure your turbo components are delivered with precision and speed.
